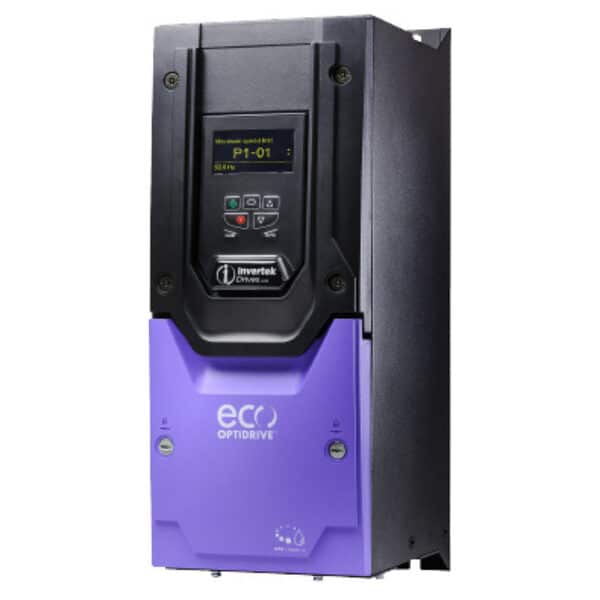

Invertek ODV-3-440390-3F1N Optidrive ECO Inverter Drive – 18.5kW 3-Phase 400V IP55 OLED Display
The Invertek ODV-3-440390-3F1N Optidrive ECO is a compact, energy-efficient 18.5kW inverter drive engineered for precise control of pumps, fans, and HVAC systems. Designed with a durable IP55-rated enclosure and integrated EMC filter, this Optidrive model ensures reliable performance even in demanding environments. The intuitive OLED text display provides easy setup and monitoring, while Invertek’s ECO technology delivers smooth motor control, reduced energy use, and long-term operational savings.
Key Specifications
Manufacturer: Invertek Drives
Series: Optidrive ECO (ODV-3)
Model: ODV-3-440390-3F1N
Power Rating: 18.5 kW (25 HP)
Input Voltage: 380 – 480 V AC
Input Phases: 3-Phase
Input Current (Continuous): 25.1 A
Recommended Supply Fuse / MCB (Type B): 40 A
Output Current: 39 A
Output Voltage: 0 – Supply Voltage
Enclosure Rating: IP55 (Dust and Water Resistant)
Display Type: OLED Text Display
EMC Filter: Internal (Standard)
Brake Transistor: Not Included
PCB Coating: Standard
Cable & Wiring Information
Maximum Supply Cable Size: 16 mm² (0.02 sq in)
Maximum Motor Cable Size: 16 mm² (0.02 sq in)
Maximum Motor Cable Length: 100 m (328 ft)
Mechanical Dimensions
Frame Size: 4
Height: 450 mm (17.72 in)
Width: 171 mm (6.73 in)
Depth: 252 mm (9.92 in)
Weight: 11.5 kg (25.35 lbs)
Fixing Points: 4 × M8 Bolts
Packaged Dimensions
Height: 510 mm (20.08 in)
Width: 240 mm (9.45 in)
Depth: 330 mm (12.99 in)
Weight: 13.5 kg (29.76 lbs)
Features & Benefits
- ✅ 18.5kW output ideal for HVAC, pump, and industrial fan systems
- ✅ Energy-efficient motor control reduces running costs and improves reliability
- ✅ Integrated EMC filter for compliance and minimal electrical interference
- ✅ IP55 protection ensures durability in harsh or dusty environments
- ✅ OLED text display offers intuitive operation and real-time status updates
- ✅ Compact and lightweight design for easy wall or panel mounting
- ✅ Maintenance-free operation with long service intervals and robust construction
Typical Applications
- Fans and blowers
- Pumps and compressors
- HVAC and ventilation systems
- Water treatment and circulation systems
- Process automation and control systems
Why Buy from Drive Outlet Megastore
Genuine Invertek Products: Brand-new, factory-sealed Optidrive ECO drives supplied with full warranty.
Expert Support: Dedicated technical assistance for setup and integration.
Fast UK Delivery: Available from stock for next-day dispatch.
Best Price Guarantee: Found it cheaper elsewhere? We’ll beat it.
Order the Invertek ODV-3-440390-3F1N Optidrive ECO 18.5kW Inverter Drive Today
Fast UK delivery, competitive trade pricing, and expert technical advice on all Invertek Optidrive ECO series inverter drives.
Contact us for live stock and trade pricing
