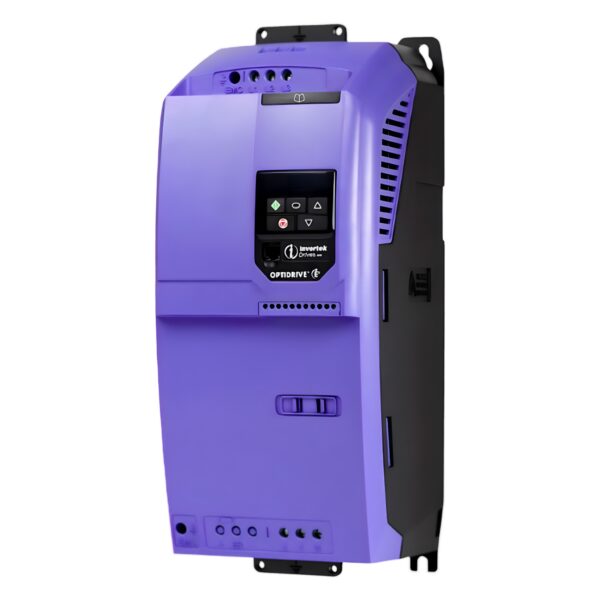

Invertek ODE-3-440300-3F42 Optidrive E3 Inverter Drive – 15kW 3-Phase 400V IP20 LED Display + Brake Transistor

The Invertek ODE-3-440300-3F42 Optidrive E3 is a reliable and efficient 15kW variable frequency drive designed for industrial motor control applications. With a compact IP20 panel-mounted design, internal brake transistor and EMC filter, this drive is ideal for pump, fan and conveyor applications requiring powerful and controlled motor regulation.

---

Key Specifications

Manufacturer: Invertek Drives
Series: Optidrive E3 (ODE-3)
Model: ODE-3-440300-3F42
Power Rating: 15 kW (20 HP)
Input Voltage: 380 – 480 V AC
Input Phases: 3-Phase
Input Current (Continuous): 34.2 A
Recommended Supply Fuse / MCB (Type B): 40 A
Output Current: 30 A
Output Voltage: 0 – Supply Voltage
Enclosure Rating: IP20 (Panel Mounted)
Display Type: LED
EMC Filter: Internal
Brake Transistor: Internal

---

Cable & Wiring Information

Maximum Supply Cable Size: 25 mm² (0.04 sq in)
Maximum Motor Cable Size: 25 mm² (0.04 sq in)
Maximum Motor Cable Length: 100 m (328 ft)

---

Mechanical Dimensions

Frame Size: 4
Height: 420 mm (16.54 in)
Width: 171 mm (6.73 in)
Depth: 212 mm (8.35 in)
Weight: 9.1 kg (20.06 lbs)
Fixing Points: 4 × M8 bolts

---

Packaged Dimensions

Height: 340 mm (13.39 in)
Width: 282 mm (11.10 in)
Depth: 560 mm (22.05 in)
Weight: 10.5 kg (23.15 lbs)

---

Features & Benefits

• ✅ Strong 15kW motor capability for mid-large industrial loads
• ✅ Internal brake transistor enhances stopping performance
• ✅ Panel-mount IP20 design suitable for control cabinets
• ✅ Integrated EMC filtering for low-noise compliance
• ✅ LED operator keypad for efficient commissioning
• ✅ Energy-saving motor control reducing energy demand

---

Typical Applications

• Pumps and fluid movement systems
• Industrial fans, blowers & HVAC
• Conveyors & materials handling
• Variable-load automation machinery
• General industrial motor control

---
