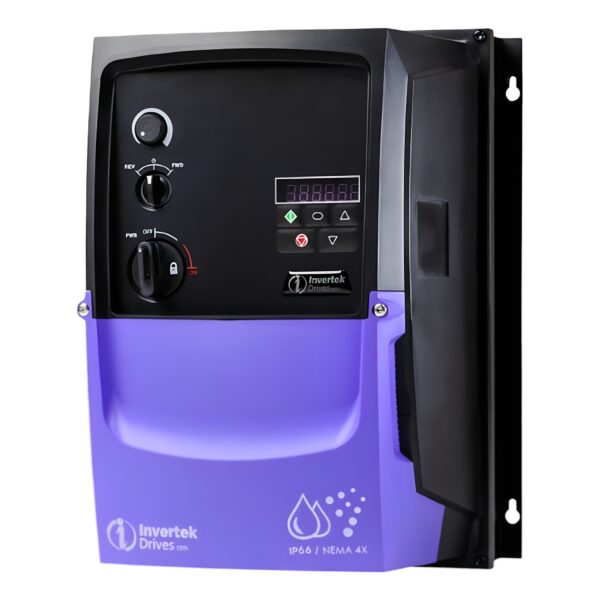

Invertek ODE-3-320153-1F4B Optidrive E3 Inverter Drive – 4kW 1-Phase 230V IP66 LED Display + Isolator

The Invertek ODE-3-320153-1F4B Optidrive E3 is a rugged 4kW variable frequency drive designed for applications that need single-phase 200–240V input with three-phase motor control. Housed in a fully sealed IP66 outdoor-rated enclosure with integrated isolator switch, it features an internal EMC filter, built-in brake transistor and a clear LED display—perfect for pumps, fans, conveyors and general automation in harsh environments.

---

Key Specifications

Manufacturer: Invertek Drives
Series: Optidrive E3 (ODE-3)
Model: ODE-3-320153-1F4B
Power Rating: 4 kW (5 HP)
Input Voltage: 200 – 240 V AC
Input Phases: 1-Phase
Input Current (Continuous): 20.2 A
Recommended Supply Fuse / MCB (Type B): 40 A
Output Current: 15.3 A
Output Voltage: 0 – Supply Voltage
Enclosure Rating: IP66 (Outdoor, Switched)
Display Type: LED
EMC Filter: Internal
Brake Transistor: Internal

---

Cable & Wiring Information

Maximum Supply Cable Size: 8 mm² (0.01 sq in)
Maximum Motor Cable Size: 8 mm² (0.01 sq in)
Maximum Motor Cable Length: 100 m (328 ft)

---

Mechanical Dimensions

Frame Size: 3
Height: 310 mm (12.2 in)
Width: 211 mm (8.31 in)
Depth: 235 mm (9.25 in)
Weight: 6.6 kg (14.55 lbs)
Fixing Points: 4 × M4 bolts

---

Packaged Dimensions

Height: 305 mm (12.01 in)
Width: 270 mm (10.63 in)
Depth: 440 mm (17.32 in)
Weight: 7.6 kg (16.76 lbs)

---

Features & Benefits

• ✅ Single-phase 230V input → three-phase motor control for easy site power compatibility
• ✅ IP66 sealed enclosure with isolator — outdoor and washdown ready
• ✅ Integrated brake transistor for controlled deceleration and high-inertia loads
• ✅ Internal EMC filter for compliant, low-noise installations
• ✅ LED operator for quick setup, status and diagnostics
• ✅ Energy-efficient speed control to reduce operating costs

---

Typical Applications

• Pumps & fluid handling (single-phase supplies)
• Fans, blowers & HVAC equipment
• Light conveyors & general machinery
• Outdoor and washdown areas
• General-purpose industrial automation

---
