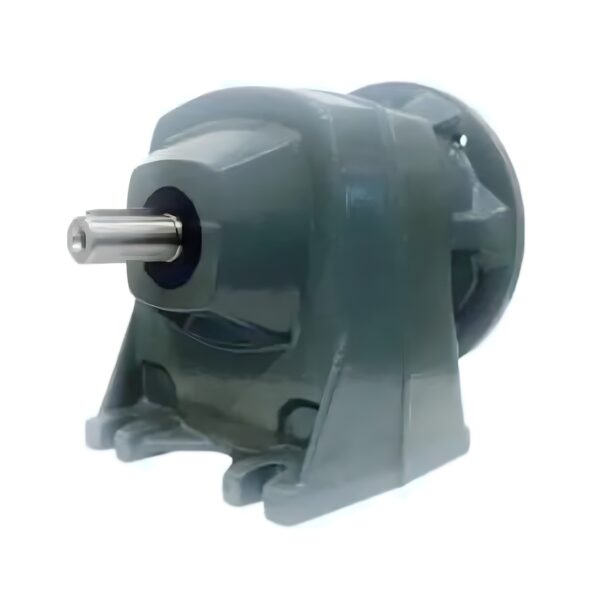

Pujol IPC 128 Inline Gearbox – 24mm Output Shaft, Cast Iron/Aluminium Options, Ratios 2.21:1–100.11:1
The Pujol IPC 128 inline gearbox is a compact, industrial helical reducer designed for conveyors, pumps, mixers, packaging lines, and automated machinery. Available in robust cast iron for demanding loads or lightweight aluminium for mobile and space-critical installs, the IPC128 ensures excellent performance, quiet operation, and long service life. Featuring a 24 mm solid output shaft and a wide range of reduction ratios, it is a versatile and efficient drive solution for continuous-duty applications.
Key Specifications
Manufacturer: Pujol
Series: IPC / IBC Inline Helical Gearbox (Cast Iron), Aluminium option available
Size: 128
Output Shaft Diameter: 24 mm Solid Shaft
Max Torque (family): Up to 8000 Nm
Max Motor Input Power (family): Up to 45 kW
Family Ratio Range: 2:1 to 282:1
Shown Ratio Range: 2.21:1–100.11:1
Input Motor Mounts: 63 B5 | 71 B5 | 80 B5 | 90 B5 | 100–112 B5
Mounting: Foot or Flange, Horizontal or Vertical
Lubrication: Factory-filled, ready for service
Housing Material: Cast Iron or Aluminium (depending on model)
Mechanical & Construction
Gearing: High-efficiency helical, case-hardened gears
Bearings & Seals: Heavy-duty, long-life components
Cooling: Ribbed housing for improved thermal dissipation
Corrosion Protection: Durable protective coating
Noise Profile: Low sound output under continuous load
Performance
Torque Output: Ratio and motor dependent (we support selection)
Efficiency: Higher than worm-drive systems
Duty Rating: Suitable for 24/7 industrial applications
Ratio Options (IPC 128 Common Selections)
- 2.21:1 | 2.77:1 | 3.66:1 | 4.57:1 | 5.55:1 | 6.91:1
- 9.44:1 | 11.47:1 | 13.77:1 | 16.53:1 | 18.23:1 | 20.68:1
- 22.72:1 | 27.61:1 | 34.37:1 | 41.45:1 | 47.56:1
- 51.59:1 | 66.69:1 | 71.40:1 | 100.11:1
Accessories & Options
- IEC motor adaptors and input flanges
- Foot or flange mounting kits
- Output shaft keys and guards
- Flexible couplings and mounting hardware
- Custom motor-ratio configurations available
Typical Applications
- Conveyors & logistics systems
- Packaging and assembly machinery
- Pumps, mixers & agitators
- General industrial automation
Features & Benefits
- ✅ 24 mm solid output shaft provides strong torque delivery
- ✅ Lightweight aluminium or rugged cast iron to fit your duty level
- ✅ Helical gearing efficiency reduces energy usage
- ✅ Broad ratio coverage for tailored speed control
- ✅ Factory-filled lubrication for fast commissioning
Why Buy from Worm Gear Motors Online?
Reliable Spanish engineering: Pujol gearboxes deliver premium durability and performance.
Expert sizing support: We confirm torque, mounting and motor fit before despatch.
Best Price Guarantee: Find it cheaper? We’ll beat it!
Order the Pujol IPC 128 Inline Gearbox – 24mm Shaft Today
All ratios and mounting configurations available with fast UK delivery and technical support.
