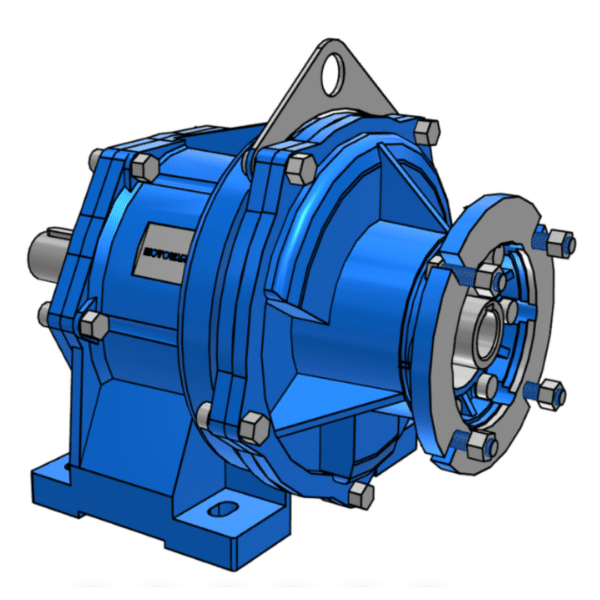

Motovario HA52 Inline Helical Gearbox – 30mm Output Shaft, Ratios 5.14:1–61.87:1
The Motovario HA52 inline helical gearbox is a lightweight and efficient reduction unit designed for reliable power transmission in industrial automation. With its 30 mm solid output shaft and corrosion-resistant aluminium housing, it is ideal for conveyors, mixers, pumps, and OEM machinery where weight savings and smooth operation are essential.
Key Specifications
Model: HA52
Output Shaft: 30 mm solid shaft
Ratio Range: 5.14:1–61.87:1
Max Motor Input Size: 100–112 IEC frame
Housing: Cast aluminium
Output Bearings: Taper roller bearings
Finish: RAL 5010 Blue powder-coat
Inputs & Mounting
Input Options: 80B5 | 80B14 | 90B5 | 90B14 | 100–112B5 | 100–112B14

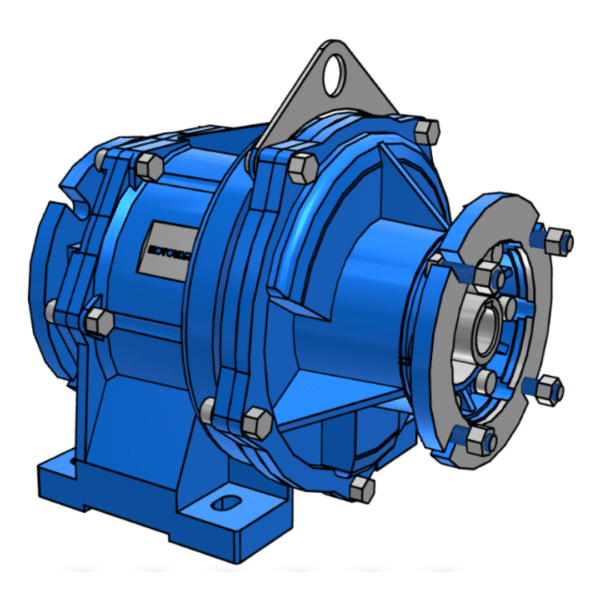

Mounting Options: Foot mounted | Foot & 160mm Output Flange | Foot & 200mm Output Flange
Mounting Positions: B3/B6/B7/B8 | V5 | V6
Lubrication & Seals
Lubrication: Synthetic ISO VG220
Input Oil Seals: NBR (Nitrile)
Output Oil Seals: NBR (Nitrile)
Accessories
- Torque arms
- Single & double output shafts
- Output covers
- Output flanges
Features & Benefits
- ✅ Lightweight aluminium housing reduces installation load
- ✅ Wide ratio range for flexible system design
- ✅ 30 mm shaft handles efficient torque transmission
- ✅ Quiet helical gear operation improves working environments
- ✅ Compatible with many IEC motor sizes & mounting styles
Typical Applications
- Conveyors & materials handling
- Food & packaging machinery
- Mixers, pumps & blower systems
- OEM automation equipment
