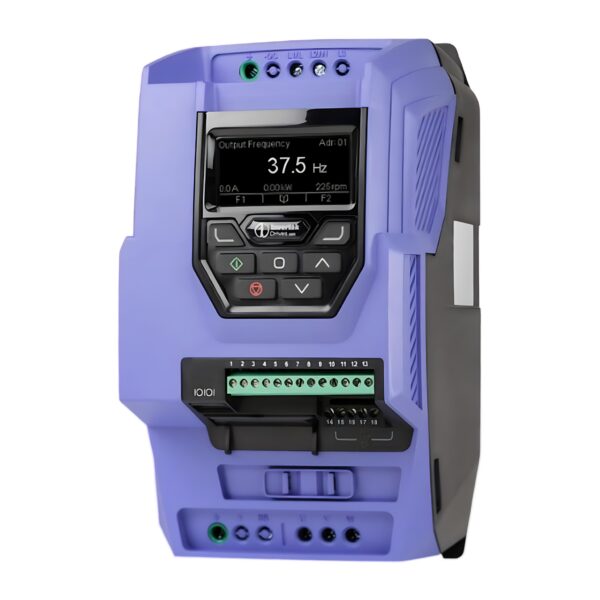

Invertek ODP-2-34075-3KF42 Optidrive P2 Inverter Drive – 7.5kW 3-Phase 400V IP20 TFT Display

The Invertek ODP-2-34075-3KF42 Optidrive P2 is a compact and high-performance 7.5kW variable frequency drive designed to deliver accurate and energy-efficient motor control in industrial environments. With an IP20 chassis-mount enclosure, integrated EMC filter, and intuitive TFT display, this drive is engineered for long-term reliability and seamless integration into automation systems.

---

Key Specifications

Manufacturer: Invertek Drives
Series: Optidrive P2 (ODP-2)
Model: ODP-2-34075-3KF42
Power Rating: 7.5 kW (10 HP)
Input Voltage: 380 – 480 V AC
Input Phases: 3-Phase
Input Current (Continuous): 21 A
Recommended Supply Fuse / MCB (Type B): 25 A
Output Current: 18 A
Output Voltage: 0 – Supply Voltage
Enclosure Rating: IP20
Display Type: TFT Display
EMC Filter: Internal
Brake Transistor: Internal
PCB Coating: Standard

---

Cable & Wiring Information

Maximum Supply Cable Size: 8 mm² (0.01 sq in)
Maximum Motor Cable Size: 8 mm² (0.01 sq in)
Maximum Motor Cable Length: 100 m (328 ft)

---

Mechanical Dimensions

Frame Size: 3
Height: 261 mm (10.28 in)
Width: 131 mm (5.16 in)
Depth: 205 mm (8.07 in)
Weight: 3.5 kg (7.72 lbs)
Fixing Points: 4 × M4 Bolts

---

Packaged Dimensions

Height: 325 mm (12.8 in)
Width: 165 mm (6.5 in)
Depth: 260 mm (10.24 in)
Weight: 3.7 kg (8.16 lbs)

---

Features & Benefits

• ✅ 7.5kW continuous duty rating for reliable industrial motor performance
• ✅ TFT display enables quick setup, easy diagnostics & real-time monitoring
• ✅ EMC filter included for noise-free, compliant installations
• ✅ Internal brake transistor for enhanced motor braking & torque control
• ✅ Energy-efficient operation helps reduce running costs
• ✅ Industrial-grade protection features extend equipment life & reduce downtime

---

Typical Applications

• Pumps & compressors
• Fans, blowers & HVAC units
• Packaging & conveyor systems
• Automation & processing machinery
• Material handling equipment

---
