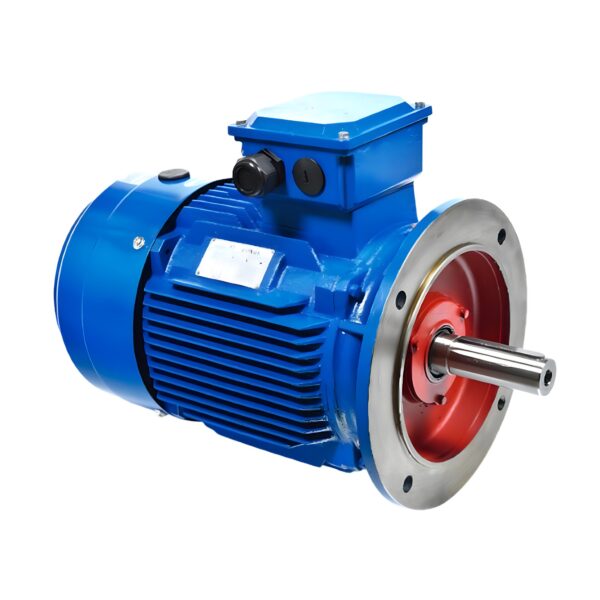

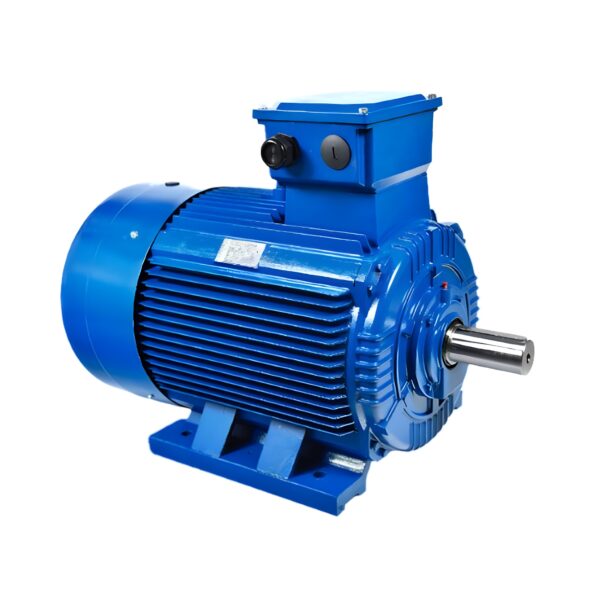

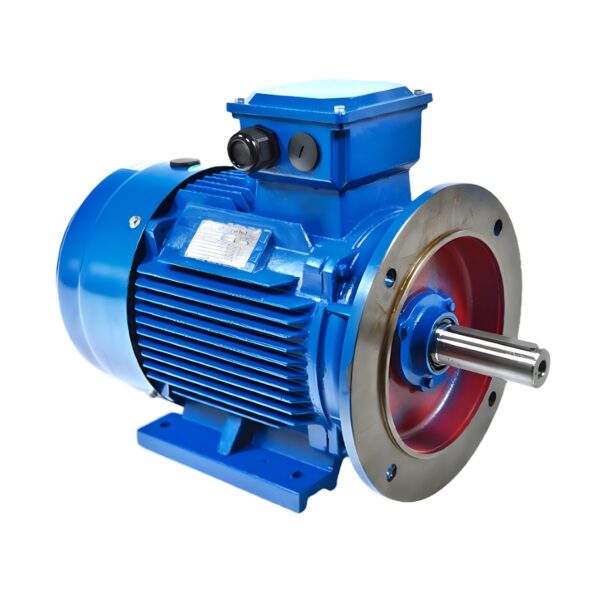

Amtecs 15kW 8 Pole IE3 Electric Motor – 25HP 225 Frame
The Amtecs 15kW 8 Pole IE3 Electric Motor is a rugged, premium-efficiency IE3 industrial motor designed for high-vibration and heavy-duty applications such as quarries, pumps, compressors, conveyors, and general manufacturing systems. This model delivers 15kW at 750 RPM (8-pole) in a durable cast iron IEC 200 frame with B3 / B5 / B35 mounting options, ensuring compatibility with both new installations and retrofits. With fixed cast feet and re-greasable bearings (frame ≥160), it offers exceptional strength, long service life, and reliable performance in demanding environments.
Key Specifications
Manufacturer: AmTecs
Series: AM3-IE3 Cast Iron Motors
Power Output: 15 kW (20 HP)
Speed: 8-Pole – 750 RPM @ 50 Hz
Voltage: 400/690 V (Δ/Y), 50 Hz
Frame Size: 200
Mounting: IM B3 (Foot), IM B5 (Flange), IM B35 (Foot + Flange)
Efficiency Class: IE3 – Premium Efficiency
Motor Type: Three-Phase Squirrel Cage Induction
Standards: IEC 60034-1
Duty: S1 Continuous
Cooling Method: TEFC – Self Ventilated
Protection: IP55
Insulation: Class F with Class B Temperature Rise
Colour: RAL 5010 Blue
Mechanical & Construction
Housing: Robust cast iron body for high mechanical strength
Feet: Fixed cast feet for heavy-duty vibration environments
Bearings: Re-greasable on frame 160 and above
Terminal Box: Cast iron, top-mounted
Thermal Protection: PTC thermistors supplied as standard
Environmental Suitability: Rugged, harsh, and industrial environments
Performance & Compliance
2p/4p/6p/8p Options: Available 3000 / 1500 / 1000 / 750 RPM
Energy Efficiency: IE3 – Reduced heat loss and energy consumption
Control Compatibility: Suitable for VFD/Inverter use
Cooling: External fan with high airflow
Applications
- Compressors and blowers
- Heavy-duty conveyor systems
- Quarry and mining machinery
- Pumping systems and hydraulic power packs
- Industrial fans and HVAC systems
- Production line & automation machinery
Features & Benefits
- ✅ Cast iron build ensures vibration resistance and long operational life
- ✅ IE3 premium efficiency reduces power usage and heat generation
- ✅ 8-pole 750 RPM for high torque, low-speed requirements
- ✅ Re-greasable bearings (F160+) for extended maintenance cycles
- ✅ Thermistors included for improved thermal protection
- ✅ B3/B5/B35 mounting flexibility for multiple installation formats
Why Buy from Worm Gear Motors Online?
Premium heavy-duty motors: Designed for demanding industrial duty cycles.
Full technical support: Application checks for torque, duty, and mounting layout.
Best Price Guarantee: Found it cheaper? We’ll beat it every time.
Order the Amtecs 15kW 8 Pole IE3 Electric Motor Today
Fast UK delivery, proven performance, and reliable customer support across the full AM3-IE3 range.
