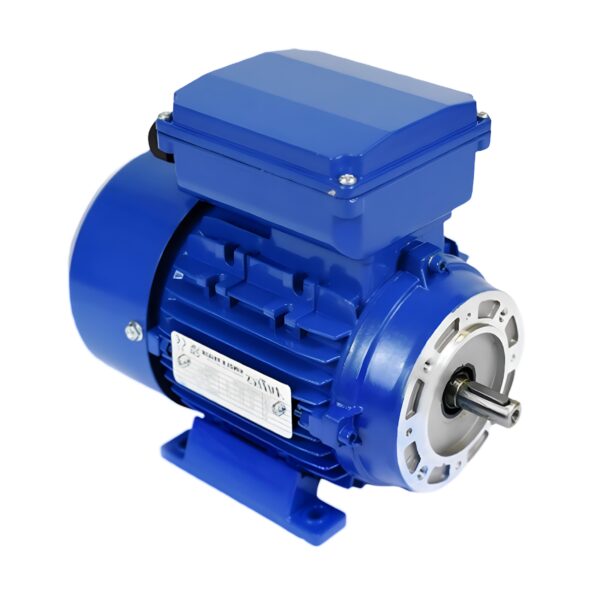

AmTecs 0.75kW 4 Pole IE2 Single Phase Capacitor Run Electric Motor – 1HP 80 Frame
The AmTecs 0.75kW 4-pole IE2 single-phase capacitor run electric motor in the AMAS-R-IE2 series is designed for continuous-duty performance in light industrial environments. Its low starting torque makes it perfect for fans, pumps, and similar machinery where the load gradually increases. With a durable aluminium frame, integral thermal protection, and a 180° rotatable terminal box, this motor provides long-lasting reliability and flexible installation options.
Key Specifications
Manufacturer: AmTecs
Series: AMAS-R-IE2 Single Phase (Capacitor Run)
Power Output: 0.75 kW (1 HP)
Speed: 4-Pole (1500 RPM)
Frame Size: 80 Frame
Mounting Type: B3
Housing Material: Aluminium Multi-Mount Frame
Voltage: 240 V Single Phase (50 Hz)
Efficiency Class: IE2
IP Rating: IP55
Insulation Class: F (80°C Temperature Rise)
Duty Type: S1 (Continuous Operation)
Mechanical & Construction
Frame Material: Aluminium Alloy
Feet: Removable / Multi-Mount for Flexible Install Options
Terminal Box: Aluminium – Rotatable 180° (Top / Left / Right Cable Entry)
Cooling Method: IC411 – External Fan Cooled
Paint Finish: RAL 5010 Blue
Mounting Formats: IM B3, B5, B14S, B34L, B35, B34S, B34L, B5R
Thermal Protection: Integrated Thermal Reset Switch
Performance & Compliance
Motor Type: Capacitor Run (Low Starting Torque Design)
Starting Torque: 0.3 – 0.7 × Rated Torque
Operating Voltage: 240 V
Frequency: 50 Hz
Ambient Operating Range: −20°C to +40°C
Rotation: Forward / Reverse Capable
Compliance: CE / UKCA Certified
Standard: IEC 60034-1
Features & Benefits
- ✅ IE2 high efficiency lowers energy consumption and operational cost
- ✅ Capacitor run motor design perfect for low starting-torque applications
- ✅ Multi-mount feet offer versatile fitting in tight installations
- ✅ Thermal overload protection included as standard
- ✅ IP55 enclosure protects against dust and water ingress
- ✅ Corrosion-resistant aluminium housing with excellent heat dissipation
- ✅ Built for continuous S1 duty in commercial and industrial environments
Typical Applications
- Air movement and ventilation fans
- Pumps and low-inertia machinery
- Food processing equipment
- General light industrial equipment
Why Buy from Worm Gear Motors Online?
Fully certified motors: UKCA & CE approved for peace of mind.
Flexible installation: Multi-mount feet and rotatable terminal box included.
Industrial durability: Built to handle demanding continuous use.
Best Price Guarantee: If you find a lower price, we’ll beat it!
Order the AmTecs 0.75kW 4 Pole IE2 Single Phase Capacitor Run Electric Motor Today
Fast UK delivery, expert support, and unbeatable pricing across the full AMAS-R-IE2 motor range.
