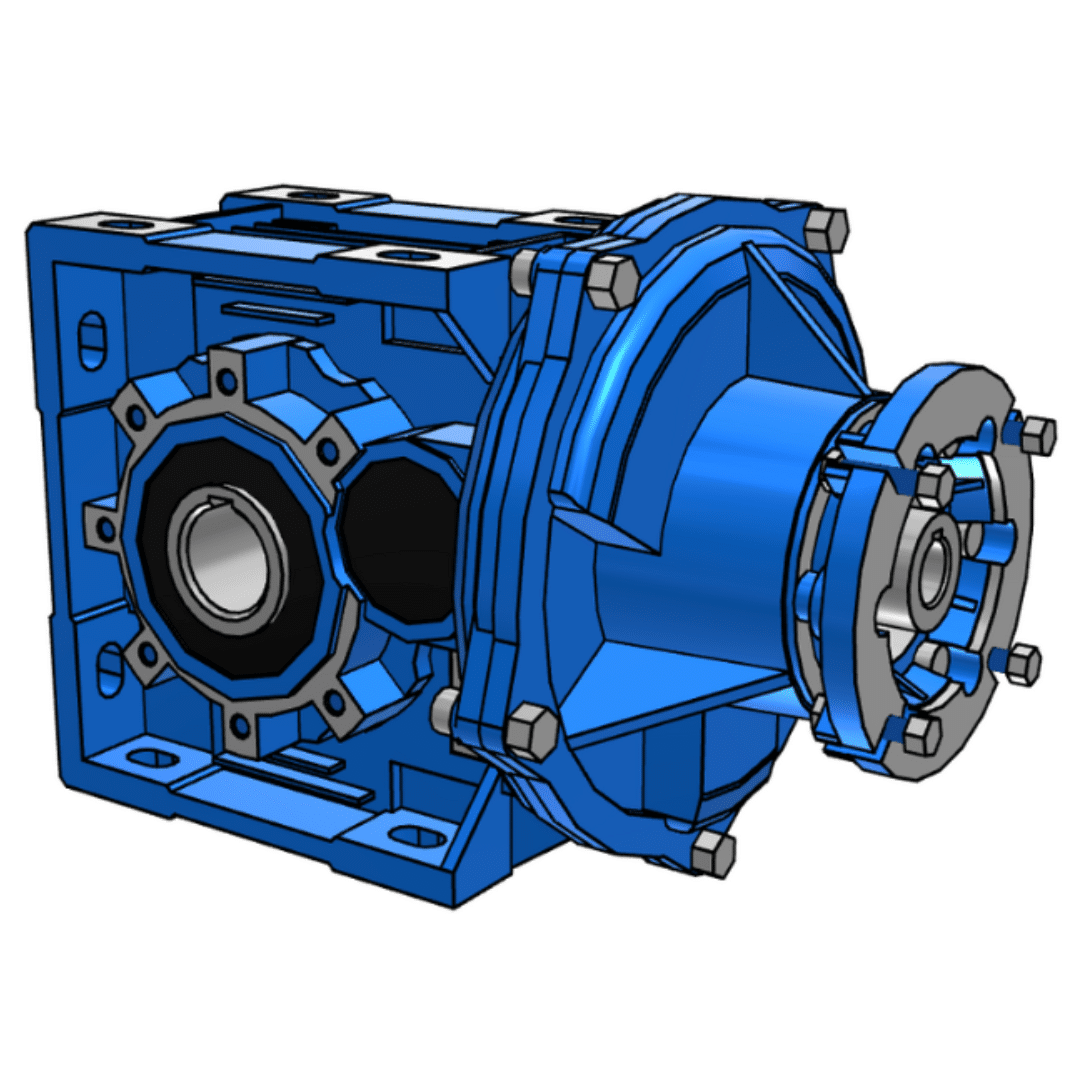

Motovario BA72 Helical Bevel Gearboxes

Motovario BA72 Helical Bevel Gearboxes

⚙️ Genuine Motovario BA72 Bevel Gearboxes
🚚 In Stock – Next Day UK Delivery Available
🛡️ 2-Year Warranty Included

Motovario BA72 Bevel Gearboxes UK Supplier – 30mm/35mm Output Bore, Right Angle Industrial Gear Reducers In Stock, Fast Delivery & Expert Support

Motovario BA72 bevel gearboxes are built for reliable 90° right-angle power transmission in compact-to-medium industrial applications where dependable torque delivery, flexible motor mounting, and long service life are essential. At Worm Gear Motors Online, we supply genuine Motovario BA72 right-angle gear reducers with fast UK dispatch, next-day delivery available, and a full 2-year warranty included.

The BA72 series combines efficient helical bevel gearing with a compact industrial housing and 30mm and 35mm hollow output bore options for secure shaft mounting and dependable power transmission. With ratio coverage from 8.36:1 up to 67.96:1, Motovario BA72 gearboxes are ideal for conveyors, packaging systems, transfer machinery, rotary equipment, and continuous-duty light-to-medium industrial automation where compact right-angle speed reduction is required.

Get a Motovario BA72 Quote
Help Me Select the Right BA72 Gearbox

Compatible with:
Electric Motors
|
Helical Bevel Gearboxes
|
Inverter Drives

Motovario BA72 Bevel Gearbox Ratio Coverage

Available ratios:

Motovario BA72 Technical Specifications

  • Gearbox Type: Helical Bevel Right-Angle Gearbox
  • Gearbox Size: BA72
  • Series Configuration: BA.2 Two-Stage Reducer
  • Output Bore Options: 30mm | 35mm Hollow Shaft
  • Motor Input Sizes: 80B14 | 80B5 | 90B14 | 90B5 | 100–112B14 | 100–112B5
  • Ratio Range: 8.36:1 to 67.96:1
  • Preferred Mounting Position: B3 for improved lubrication and reduced heating
  • Standard Lubricant: ENI BLASIA 220 / ISO VG220
  • Oil Fill Quantity (B3): Approx. 1.0 litres
  • Average Dynamic Efficiency: Approx. 0.95
  • Supply Condition: Supplied complete with lubricant, no oil plugs, maintenance-free under normal operating conditions
  • Motor Flange Compatibility: IEC B5 and B14 depending on motor size and ratio
  • Available Output Flanges: FA | FB
  • Optional Accessories: Torque arm available for shaft-mounted installations
  • Application Type: Compact right-angle speed reduction for industrial machinery
  • Mounting Flexibility: Suitable for OEM systems, replacements, and retrofit installations

Motovario BA72 Motor Input Options (IEC)

Available motor inputs:
80B14 | 80B5 | 90B14 | 90B5 | 100–112B14 | 100–112B5

Ratio compatibility note: Ratios 8.36:1 to 22.19:1 are listed with 80, 90, and 100–112 frame motor compatibility. Ratios 27.45:1 to 40.87:1 are listed with 80, 90, 100, and 112 frame compatibility. Ratios 45.64:1 to 67.96:1 are listed with 80 and 90 frame compatibility only.

Motovario BA72 Output Bore Options

Available output bores:
30mm | 35mm

Motovario BA72 Output Bore Dimensions

  • 30mm Bore: Key 8mm | t = 33.3
  • 35mm Bore: Key 10mm | t = 38.3

Motovario BA72 Bevel Gearbox Features

  • Right-angle bevel gearbox design for compact 90° power transmission
  • Wide ratio coverage (8.36:1–67.96:1) for flexible speed and torque configuration
  • 30mm and 35mm hollow bore options for secure shaft mounting in compact machinery
  • IEC B5 and B14 motor compatibility for flexible motor integration
  • High-efficiency two-stage gearing for smooth output and dependable torque transfer
  • B3-optimised lubrication layout for improved running conditions and reduced heating
  • Compact industrial footprint suited to space-saving machine layouts
  • Accessory compatibility for output flanges, torque arms, mounting components, and related gearbox hardware

Ideal for Compact Right-Angle Industrial Applications

Motovario BA72 bevel gearboxes are widely used in conveyors, packaging machinery, transfer systems, bottling equipment, light process lines, and general automation where compact right-angle installation and reliable speed reduction are required. Their flexible motor input options and broad ratio spread make them a strong choice for both OEM machinery builds and replacement gearbox applications.

About Motovario BA Series Gearboxes

Motovario BA Series helical bevel gearboxes are designed for efficient right-angle power transmission in compact industrial environments where installation flexibility and dependable long-term performance are both important. The BA72 size is especially well suited to machinery builds that require more output capacity than smaller BA units while still retaining a compact, efficient right-angle gearbox platform.

Motovario BA72 Gearbox FAQ

What motor sizes fit the Motovario BA72 gearbox?
The BA72 range supports IEC motor inputs including 80B14, 80B5, 90B14, 90B5, 100–112B14, and 100–112B5, depending on the exact ratio and configuration selected.

What output bore options are available on the BA72?
Motovario BA72 bevel gearboxes in this range are available with 30mm and 35mm hollow output bores for secure shaft-mounted installations.

What is the preferred mounting position for the BA72?
Motovario lists B3 as the preferred mounting position because it provides improved lubrication, lower oil splash, and reduced heating during operation.

What output flange options are available for the BA72?
Motovario BA72 gearboxes support FA and FB output flange options, making them suitable for a wider range of machine integration and mounting requirements.

What applications are Motovario BA72 bevel gearboxes used for?
They are commonly used in conveyors, packaging systems, rotary machines, and other industrial equipment needing compact 90-degree power transmission with reliable speed reduction and torque output.

Are Motovario BA72 gearboxes available for fast UK delivery?
Yes, we supply genuine Motovario BA72 gearboxes with fast UK dispatch, next-day delivery available, and expert selection support.

Motovario BA72 Bevel Gearboxes In Stock UK

We supply genuine Motovario BA72 bevel gearboxes with fast UK dispatch, next-day delivery available, and a full 2-year warranty included. Multiple ratios and IEC motor input configurations are available to suit OEM machinery, plant upgrades, and replacement gearbox applications.

Browse the full Motovario BA72 bevel gearbox range above or contact our team today for expert advice, fast delivery, and competitive pricing.
